Perforated/Curved/Wood-Grain/PVDF-Coated Irregular Aluminum Panels – Full-Aluminum Wall & Curtain Wall Panels for Storefront & Exterior Decoration
| Place of Origin | Made in China |
|---|---|
| Brand Name | TianYuan |
| Certification | CE,ISO9000... |
| Model Number | TY-010 |
| Minimum Order Quantity | 1*20"container |
| Price | USD15.7/m2 |
| Packaging Details | 1pcs/PE packing /box /wood packing |
| Delivery Time | 15-20days |
| Payment Terms | L/C,T/T |
| Supply Ability | 9000M2/days |
Product Details
| Product Material | Aluminum Alloy | Product Color | White |
|---|---|---|---|
| Product Processes | Perforation | Surface Treatment | Fluorocarbon Paint, Wood Grain, Stone Grain, Bamboo Grain, Polyester Paint, Powder Coating, Anodizing, UV Digital Printing (All Customizable) |
| Highlight | perforated aluminum wall panels,wood-grain PVDF-coated aluminum panels,curved aluminum curtain wall panels |
||
Product Description
Perforated Aluminum Panels for Architectural Applications
Perforated aluminum veneer is a modern architectural material that combines decorative appeal with functional performance. Featuring lightweight construction, high strength, custom design options, and multi-functional benefits, it has become essential in architectural decoration. Suitable for unique aesthetic requirements and functional applications including acoustics and ventilation.
Specifications & Materials
Standard Specifications
- Sheet thickness: 1.5mm, 2.0mm, 2.5mm, 3.0mm (most common); up to 5.0mm for special applications
- Hole diameter options:
- Ultra-micropore: 0.4~1.0mm (sound absorption)
- Micropore: 1.0~3mm
- Medium pore: 3.0~10mm (decoration & ventilation)
- Large pore: 10~200mm (special decorative effects)
- Maximum size: Approximately 1500×4000mm (subject to equipment limitations)
- Perforation rate: 15%-70% (adjustable for optimal light transmission and ventilation)
Material Options
Primary aluminum alloy grades: 1100, 3003, 3004, 3005, 5052, 5754. Mostly H24 temper for optimal strength and processability.
Pricing Reference
| Type | Price Range (RMB/㎡) | Notes |
|---|---|---|
| Standard perforated aluminum veneer | 150~300 | Standard specifications, regular hole patterns, conventional coating |
| Custom perforated aluminum veneer | 300~600+ | Special hole patterns, complex designs, fluorocarbon coating |
| Sound-absorbing perforated aluminum veneer | 400~800 | Equipped with sound-absorbing layer for acoustic applications |
| Extra-large/special-shaped perforated aluminum veneer | 600~1200+ | Oversized dimensions or custom shapes with high processing difficulty |
Prices vary based on material grade, thickness, hole specifications, surface treatment, processing complexity, and brand.
Surface Treatments
Balancing aesthetic appeal with weather resistance for various applications.
PVDF Fluorocarbon Coating
Preferred for outdoor applications. Coating thickness ≥60μm, UV-resistant, salt spray-resistant, and fade-resistant with 20-30 year service life. Complies with AAMA 2605 standards.
Powder Coating
Suitable for indoor and mild outdoor environments. Extensive color options (Pantone customizable), eco-friendly (no VOCs), scratch-resistant with 15-20 year service life. Complies with AAMA 2603 standards.
Wood Grain/Stone Grain Transfer
Heat transfer process creates realistic textures, ideal for natural and new Chinese-style designs. Weather-resistant (PVDF primer recommended for outdoor use).
Anodizing
Natural metal colors (silver, gold, black), high hardness (≥HV300), corrosion-resistant, perfect for industrial and minimalist styles.
Application Scenarios

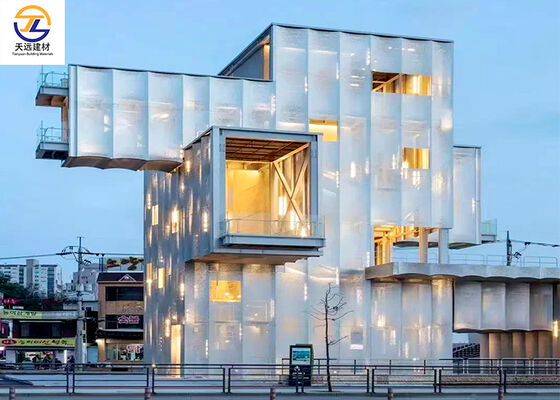

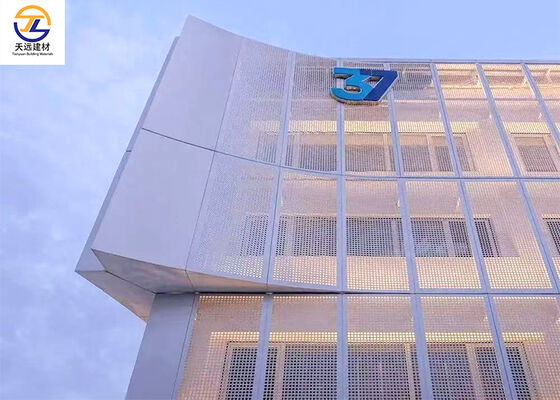

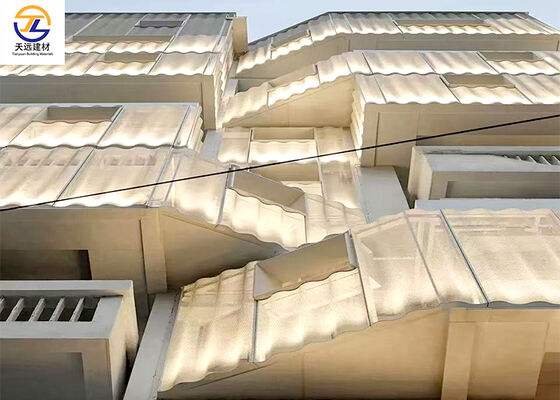

Building Facades & Curtain Walls
Creates unique light and shadow effects with dynamic aesthetics that change with lighting conditions. Provides sunshade and heat insulation, reducing building energy consumption. Ideal for high-rise buildings including office towers, hotels, and commercial complexes.
Interior Decoration
- Ceilings: Suitable for large spaces like shopping malls, airports, and subway stations, combining aesthetics with acoustic functionality
- Wall cladding: Perfect for hotel lobbies and corporate reception areas to create distinctive spaces
- Partitions/Screens: Balances privacy and openness with controlled light transmission
Functional Applications
- Acoustic engineering: Ideal for conference rooms, concert halls, and venues requiring superior sound quality
- Sunshade systems: Controls light incidence and regulates indoor temperature
- Ventilation: Integrated ventilation and decoration solutions for large public spaces like airports and stations
- Billboards/Storefronts: Unique hollow design enhances commercial signage appeal
