All Products
Wood Grain Aluminum Battens for Ceilings, Decorative Aluminum Square Tubes, Spray-Painted & Baked-Enamel Aluminum Battens, Partition Aluminum Battens, Curved Aluminum Batten Profiles
| Place of Origin | Made in China |
|---|---|
| Brand Name | TianYuan |
| Certification | CE,ISO9000... |
| Model Number | TY-010 |
| Minimum Order Quantity | 1*20"container |
| Price | USD15.7/m2 |
| Packaging Details | 1pcs/PE packing /box /wood packing |
| Delivery Time | 15-20days |
| Payment Terms | L/C, T/T |
| Supply Ability | 9000M2/days |
Product Details
| Product Name | Curved Aluminum Square Tube | Product Thickness | 0.5-3.0mm (Customizable) |
|---|---|---|---|
| Product Color | All Colors Customizable | Application Scenarios | Indoor Ceilings Outdoor Curtain Walls |
| Highlight | wood grain aluminum ceiling battens,spray-painted baked-enamel aluminum tubes,curved aluminum batten wall profiles |
||
Product Description

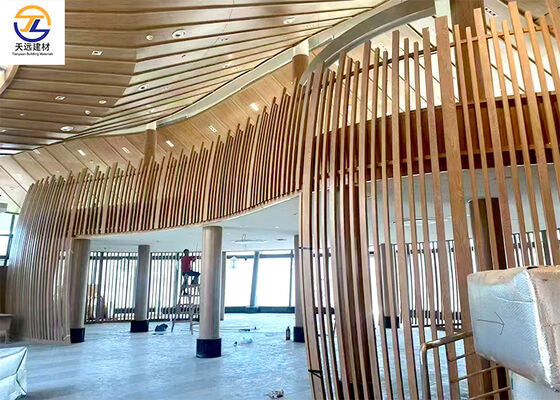

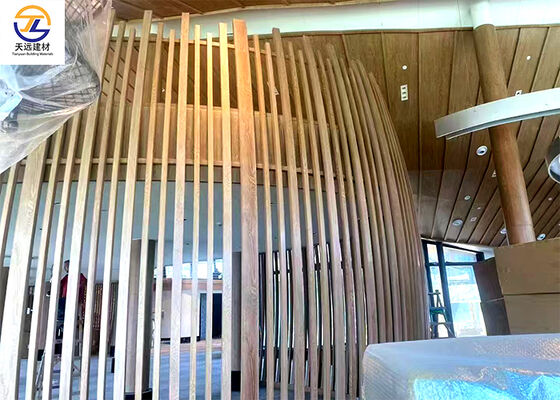

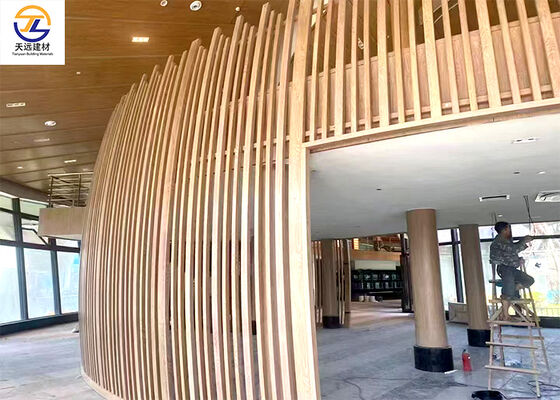

Wood Grain Aluminum Ceiling Battens
Wood grain aluminum ceiling battens combine natural wood aesthetics with aluminum alloy performance, offering exceptional visual appeal, practicality, and environmental benefits for diverse architectural applications.
Aesthetic Value & Style Adaptability
Hyper-Realistic Wood Texture
Advanced heat transfer and 3D wood grain replication processes deliver textures and tactile sensations nearly identical to natural wood, capturing subtle grain details while avoiding wood's inherent flaws like knots and color variations.
Versatile Styling Options
Available in various wood species including walnut, oak, and maple, combined with diverse specifications and shapes to fit styles from minimalist modern to new Chinese, meeting high-end texture requirements for commercial spaces.
Enhanced Spatial Layering
The grid structure provides transparency, breaking up monotonous surfaces while light and shadow interplay through gaps to deepen spatial depth, adding design flair to ceilings and walls.
Common Specifications
- Width (W): 20-400mm (commonly 30-200mm)
- Height (H): 20-600mm (commonly 50-200mm)
- Thickness (δ): 0.4-3.5mm (0.5-1.2mm for ceilings; 1.5-3.0mm for curtain walls)
- Length (L): 1-6 meters (customizable)
Popular Specification Combinations
30×80×0.6mm, 40×60×0.8mm, 50×100×1.0mm, 30×50×0.8mm
U-shaped battens: U25 (25×50-120mm), U30 (30×50-120mm)
U-shaped battens: U25 (25×50-120mm), U30 (30×50-120mm)
Specification Selection Guide
- Ceiling height ≤3m: Choose narrow widths (30-50mm) for lightweight visual effect
- Ceiling height >4m: Opt for wider widths (100-200mm) to enhance spatial layering
- Ceilings: 50-150mm height, 0.6-1.0mm thickness
- Curtain walls/partitions: 100-300mm height, 1.0-2.0mm thickness
Surface Treatment Comparison
| Treatment Process | Features | Application Scenarios |
|---|---|---|
| Heat Transfer Wood Grain | Realistic wood texture, natural touch, long-lasting color | Indoor ceilings, furniture, room dividers |
| Fluorocarbon Coating | Exceptional weather resistance (20+ years), UV protection, self-cleaning | Exterior walls, high-rise buildings, outdoor projects |
| Electrostatic Powder Coating | Rich color options, moderate cost, strong adhesion | Regular indoor use, cost-effective choice |
| Roll Coating | Uniform coating, smooth surface, suitable for large areas | Commercial spaces, corridor ceilings |
| Lamination | Strong three-dimensional effect, premium texture, easy to clean | High-end commercial projects, custom designs |
| 3D Wood Grain | Ultra-realistic 3D texture, nearly indistinguishable from real wood, complex process | Museums, high-end exhibition halls |
Installation & Maintenance
Installation Methods
- Snap-On Type: Specialized keels + windproof clips for quick installation and easy removal (ideal for ceilings)
- Screw Fixation: Used for curtain walls/partitions; connects to keels via profile grooves for strong wind resistance
- Special Shapes: Curved/wave-shaped battens require custom processing and modular splicing for enhanced visual impact
Maintenance Tips
- Daily Cleaning: Wipe with a damp cloth - no special cleaners needed
- Regular Inspection: Check fasteners every 2 years and re-tighten if loose
- Stain Removal: Use neutral cleaners for stubborn stains; avoid strong acids/alkalis
