Product Description:

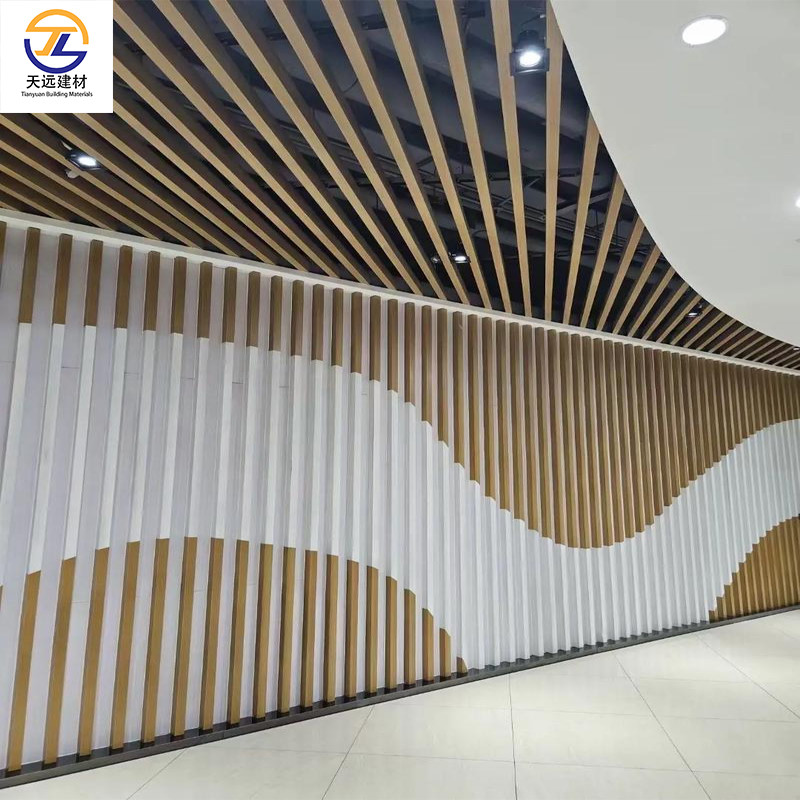

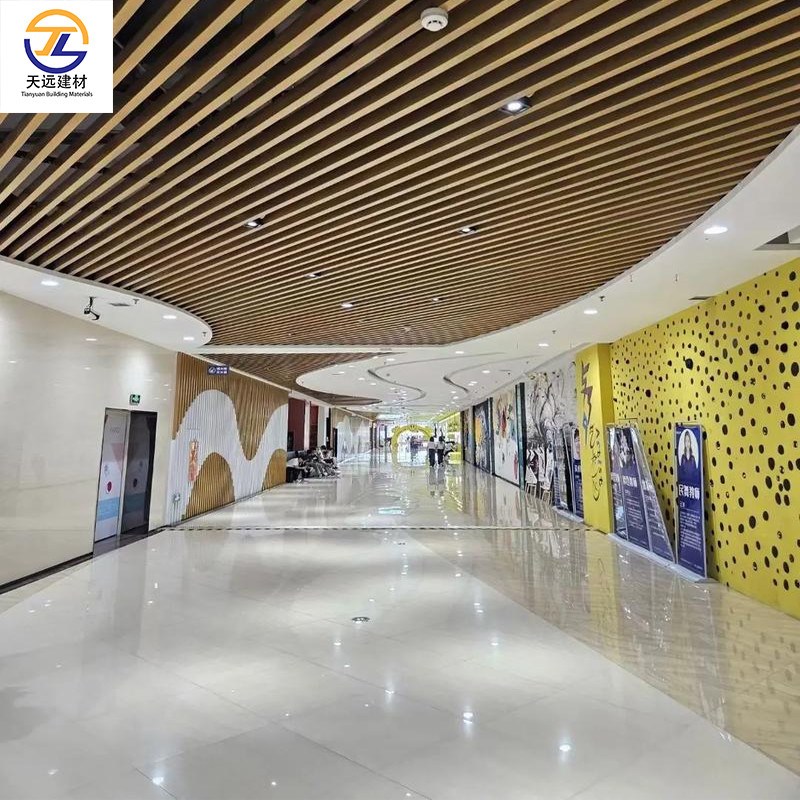

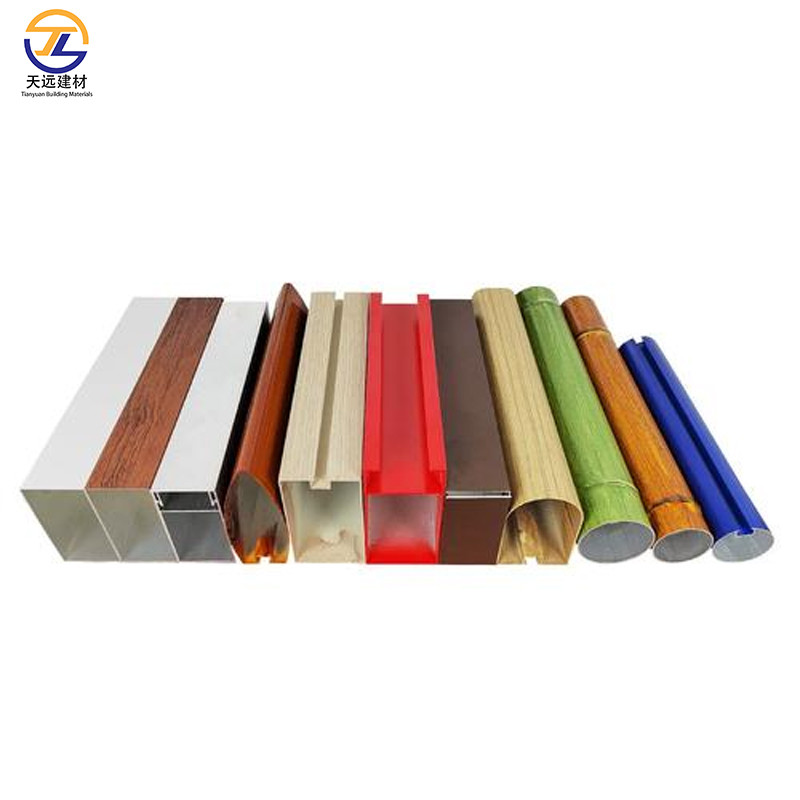

The square tube aluminum ceiling has a novel structure, generous design, and overall cleanliness, which can perfectly express the designer's ideas. It is innovative and unique, and the structural framework is full of modernity. Vertical dense splicing, flat surface, sturdy structure, simple and vivid connecting lines, full of dynamic changes. The product series can provide various plastic film covers, spraying, punching, etc., suitable for indoor and outdoor installation.

Quick Details:

1, Product Name: C-shaped Strip Ceiling
2, Perforate: 1.0, 1.8, 2.3mm round straight holes or plain
3, Edge profile: Beveled Edge/straight edge
4, Sound absorption: Germany soundtex, MRC0.65-0.8
5, Workmanship: Extrusion moulding forming
6, User type: Special size, kinds of punch, surface colors and assembly of installation, that could be to orders
7, Installation System: Black groove level type system and T-shaped carrier syste

Specification:

Preparation before installation

Material Inspection

• Verify whether the specifications (size, thickness, color), quantity, and accessories (hangers, keels, connectors, etc.) of the aluminum square tube meet the design requirements.
• Check the surface of the aluminum square tube for scratches, deformation, or oxidation issues.

Tool preparation

• Common tools: electric drill, screwdriver, cutting machine (or angle grinder), level, tape measure, ink box, wrench, etc.
• Auxiliary materials: self tapping screws, expansion bolts, suspension wires, structural adhesive (to be selected according to the installation method).
• surveying and setting out
• According to the design drawings, mark the installation reference line on the wall or top surface, indicating the installation position, height, and spacing of the aluminum square tube.

Installation steps
1. Install the base skeleton
Ceiling installation:

• Fix the light steel keel or angle iron skeleton, fix the suspension rod to the ceiling with expansion bolts, and ensure that the skeleton is level (calibrated with a spirit level).
• The spacing between main keels is generally ≤ 1.2 meters, and the spacing between secondary keels is adjusted according to the width of the aluminum square tube (usually 30-60cm).

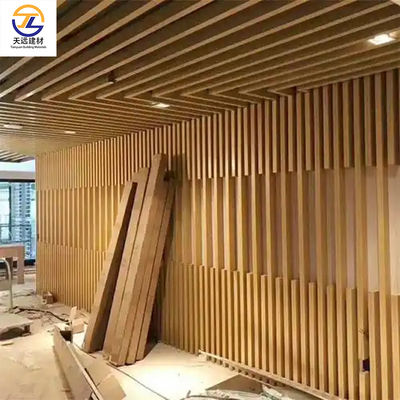

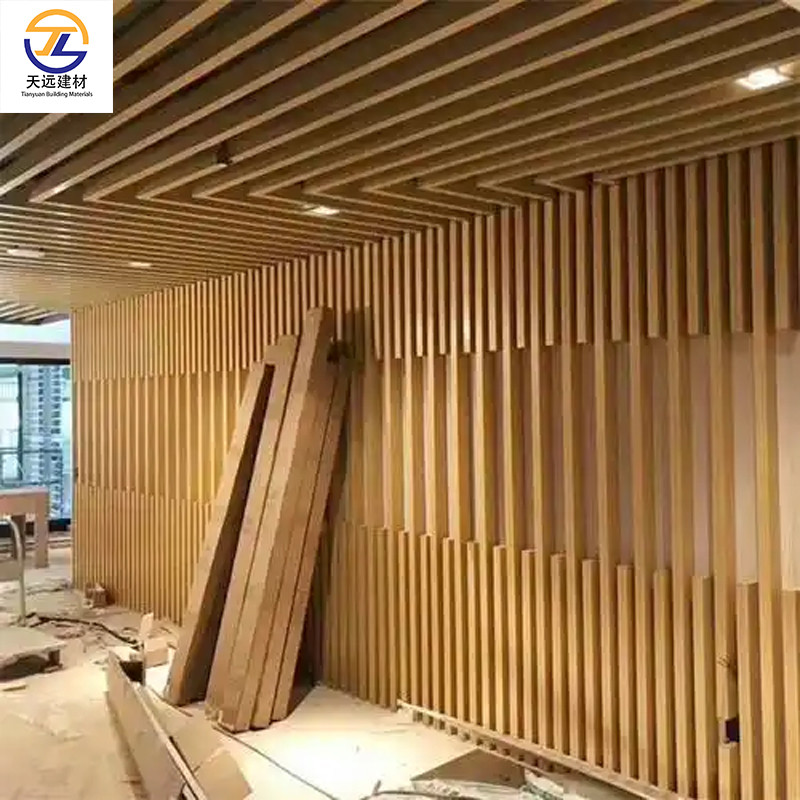

Wall installation:

• First, fix the support frame on the wall with a metal skeleton (such as square steel or aluminum keel) to ensure verticality and levelness.

2. Installation of aluminum square tube
Snap on installation (suitable for aluminum square tubes with grooves):

• Insert the two ends of the aluminum square tube into the dedicated keel or slot, gently push it into place, and ensure flatness.
• Secure with matching buckles or screws (pay attention to the screw position when installing concealed).

Screw direct fixation:

• Drill holes on both sides or the back of the aluminum square tube and fix it on the keel with self tapping screws (recommended screw spacing of 30-50cm).
• The screw head can be covered with a decorative cap or painted with matching color paint.
• Hanging installation (suitable for hanging effect):
• Connect the aluminum square tube to the top structure with steel wire or metal chain, adjust the length to ensure levelness.

3. Adjustment and Closing

• During the installation process, always use a level to check the flatness and fine tune the position of the aluminum square tube.
• When cutting aluminum square tubes at edges or corners, the cut should be polished smooth to avoid burrs.
• The joint can be covered with sealant or decorative pressure strips (if necessary).

Q: What is the brand name of the Aluminum Metal Ceiling product?

A: The brand name is TianYuan.

Q: What is the model number of the Aluminum Metal Ceiling product?

A: The model number is TY-001.

Q: Where is the Aluminum Metal Ceiling product manufactured?

A: The product is made in China.

Q: What are the accepted payment terms for purchasing the Aluminum Metal Ceiling product?

A: The accepted payment terms are L/C and T/T.

Q: What is the price of the Aluminum Metal Ceiling product?

A: The price is USD15.7/m2.
