Natural wood grain meets metallic texture – the 50*100 wood-grain aluminum square tubes outline the transparent layout of the atrium.

  • Natural wood grain meets metallic texture – the 50*100 wood-grain aluminum square tubes outline the transparent layout of the atrium.
  • Natural wood grain meets metallic texture – the 50*100 wood-grain aluminum square tubes outline the transparent layout of the atrium.
  • Natural wood grain meets metallic texture – the 50*100 wood-grain aluminum square tubes outline the transparent layout of the atrium.
  • Natural wood grain meets metallic texture – the 50*100 wood-grain aluminum square tubes outline the transparent layout of the atrium.
  • Natural wood grain meets metallic texture – the 50*100 wood-grain aluminum square tubes outline the transparent layout of the atrium.
Place of Origin Made in China
Brand Name TianYuan
Certification CE,ISO9000...
Model Number TY-010
Minimum Order Quantity 1*20"container
Price USD15.7/m2
Packaging Details 1pcs/PE packing /box /wood packing
Delivery Time 15-20days
Payment Terms L/C, T/T
Supply Ability 9000M2/days
Product Details
Application Commercial Buildings Ceiling Tile Type Metal Ceilings
Moistureproof Yes Corrosion Resistance Excellent
Certificates CE/CCC/ISO9000 Function Anti-static, Anti-Bacterial, Mould-proof
Surface Treatment Powder Coated Durability Long-lasting
Stain Resistant Yes
Highlight

wood grain aluminum square tubes

,

50x100 aluminum profiles

,

metallic texture aluminum tubes
Leave a Message
Product Description
Profiled Aluminum Square Tubes: Modern Architectural Decoration Solution
Profiled aluminum square tubes are long strip-shaped decorative profiles manufactured from high-purity aluminum alloy using the supergravity extrusion molding process. These profiles deliver exceptional hardness, straightness, and deformation resistance for demanding architectural applications.
Core Product Characteristics
  • Lightweight Material: Low density reduces building load-bearing pressure while facilitating transportation and installation
  • Superior Strength: Enhanced hardness and straightness exceed ordinary aluminum square tubes with stable structure and minimal deformation
  • Wind and Earthquake Resistance: Special groove design enables firm connections with customized components, suitable for high-rise buildings and outdoor environments
  • Fire Safety: Class A non-combustible material with high temperature resistance and no fire hazards
  • Strong Weather Resistance: Natural oxide film surface resists acid-base corrosion and rust, providing 15-20 year service life

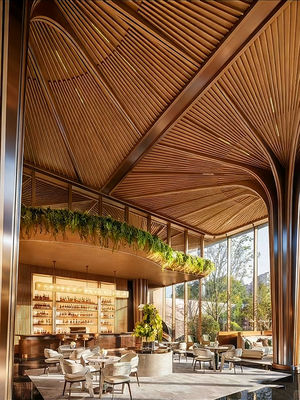

Natural wood grain meets metallic texture – the 50*100 wood-grain aluminum square tubes outline the transparent layout of the atrium. 0
Specification Parameters (Unit: mm)
Standard Specification Range:
Parameter Range Common Sizes
Bottom Width 20-400 50, 80, 100, 150
Height 20-600 50, 100, 200
Wall Thickness 0.4-3.5 0.6-1.2 (indoor), ≥1.5 (outdoor)
Special Specifications: Up to 300×150×3.5mm, meeting large-scale project requirements

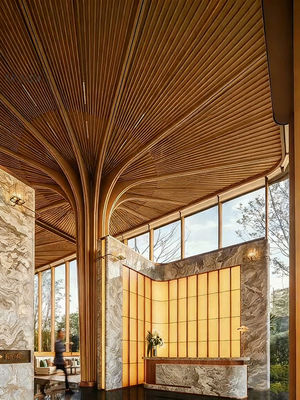

Natural wood grain meets metallic texture – the 50*100 wood-grain aluminum square tubes outline the transparent layout of the atrium. 1
Surface Treatment Processes and Effects
  • Powder Coating: Over 60 standard colors with strong weather resistance and minimal fading
  • Fluorocarbon Coating: Ideal for outdoor applications with UV and acid-base resistance, maintaining color for over 10 years
  • Wood Grain Transfer Printing: Simulates natural wood texture while providing metal durability
  • Stone/Marble Grain: Enhances spatial luxury for high-end venues
  • Anodizing: Creates natural oxide film with high hardness and wear resistance
  • Electroplating Treatment: Produces metallic mirror effect for enhanced spatial grandeur

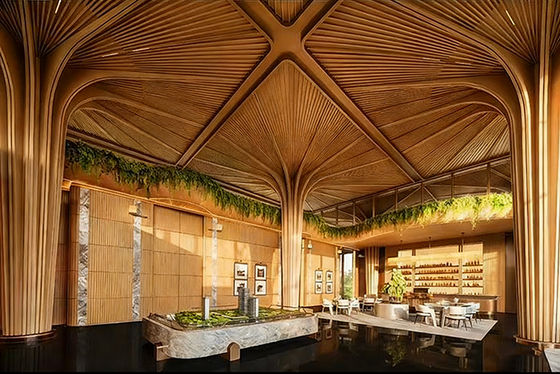

Natural wood grain meets metallic texture – the 50*100 wood-grain aluminum square tubes outline the transparent layout of the atrium. 2
Design and Installation Guidelines
Selection Guide by Application Scenario
  • Indoor Ceilings: U-shaped or straight aluminum square tubes with 0.6-1.2mm thickness
  • Outdoor Curtain Walls: Profiled aluminum square tubes with ≥1.5mm thickness and fluorocarbon coating
  • Humid Environments: U-shaped aluminum square tubes with mildew-proof treatment
  • Large Spaces: Curved/wavy shapes to address acoustic problems and create visual impact
Installation Process Overview
  1. Surveying and Setting Out: Determine installation positions and keel spacing (30-40cm recommended)
  2. Installing Keels: Fix light steel keel system to ensure levelness
  3. Installing Hangers: Fix special hangers at both ends of aluminum square tubes
  4. Keel Connection: Connect aluminum square tubes to keels using screws and customized components
  5. Adjusting Spacing: Ensure uniform spacing between square tubes for consistent visual effect
Practical Design Recommendations
  • Commercial Spaces: Control spacing at 60-80mm to enhance spatial transparency
  • Residential Spaces: Spacing of 80-100mm to create comfortable atmosphere
  • Floor Height Optimization: Narrow strips (30mm) suitable for spaces with floor height ≤3m
  • Acoustic Needs: Perforated aluminum square tubes with sound-absorbing cotton achieve noise reduction coefficient up to 0.7 or higher

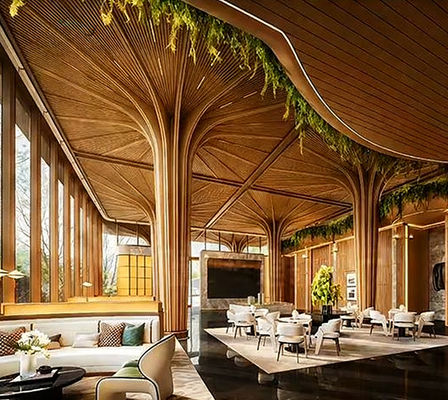

Natural wood grain meets metallic texture – the 50*100 wood-grain aluminum square tubes outline the transparent layout of the atrium. 3
