2.5mm Fluorocarbon-Coated Bronze Textured Concave-Convex Aluminum Single Panel
| Place of Origin | Made in China |
|---|---|
| Brand Name | TianYuan |
| Certification | CE,ISO9000... |
| Model Number | TY-010 |
| Minimum Order Quantity | 1*20"container |
| Price | USD15.7/m2 |
| Packaging Details | 1pcs/PE packing /box /wood packing |
| Delivery Time | 15-20days |
| Payment Terms | L/C, T/T |
| Supply Ability | 9000M2/days |
Contact me for free samples and coupons.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Commercial Buildings | Ceiling Tile Type | Metal Ceilings |
|---|---|---|---|
| Assembly | Easy To Assemble | Panel Thickness | 0.4 - 0.9mm |
| Surface Treatment | Powder Coated | Function | Organizing And Storing Items |
| Durability | High | Maintenance | Easy To Clean |
| Highlight | 2.5mm fluorocarbon-coated aluminum ceiling panel,bronze textured concave-convex ceiling panel,single panel aluminum metal ceiling |
||
Product Description

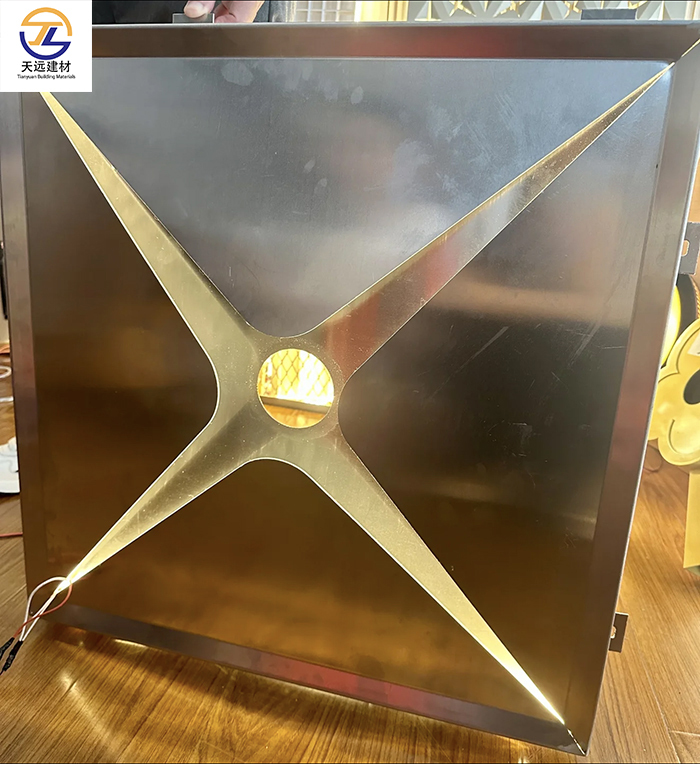

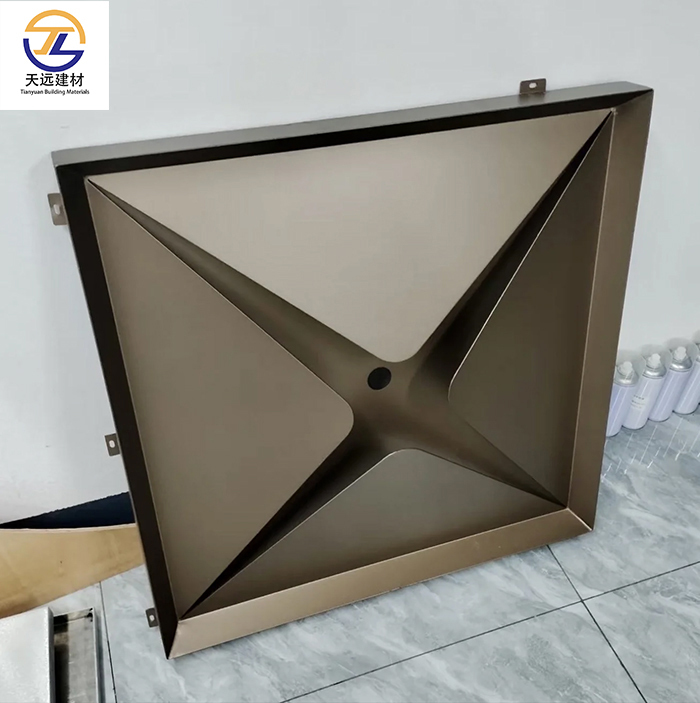

2.5mm Fluorocarbon-Coated Bronze Textured Concave-Convex Aluminum Single Panel
The 2.5mm Fluorocarbon-Coated Antique Bronze Textured Concave-Convex Aluminum Veneer is a high-performance architectural decorative material. It is made of 2.5mm-thick aluminum alloy sheets (typically 3003 series, H24 temper) as the base material, formed into 3D concave-convex textures through CNC bending, molding, or etching processes, and finished with fluorocarbon spraying technology (incorporating a special antique bronze formula) for premium architectural applications.
Core Features & Advantages
Material Advantages
- Lightweight & High-Strength: Density of 2.7g/cm³, weighing only ~6.8kg/m², with tensile strength of 100-280N/mm². Reduces building load while ensuring structural stability.
- Superior Weather Resistance: Fluorocarbon coating resists UV radiation, acid rain, and salt spray corrosion, maintaining colorfastness for 20-25 years outdoors.
- Fire Safety: Non-combustible aluminum base meets global building fire safety standards.
- Eco-Friendly & Recyclable: 100% recyclable, aligning with green building initiatives.
Texture & Aesthetic Highlights
- 3D Layered Effect: Concave-convex textures create unique light and shadow interactions, enhancing the visual impact of building facades.
- Antique Bronze Charm: Warm brown tones with metallic luster replicate the elegance of real copper at only 1/5 the cost.
- Smooth Tactile Finish: Fluorocarbon coating offers a sleek, non-glare surface for comfortable visual experience.
Craftsmanship & Performance
- Multi-Coat Protection: Adopts "three-coat two-bake" process (primer + antique bronze topcoat + clear coat) to form a composite protective film ≥40μm thick.
- Extreme Environment Adaptability: Stable performance from -50℃ to 80℃ without deformation or discoloration.
- Self-Cleaning Function: Low surface tension of fluorocarbon coating prevents dirt accumulation; rainwater rinsing restores cleanliness.
Manufacturing Process Details
Material Selection & Pre-Treatment
High-quality 3003/H24 aluminum alloy sheets undergo cleaning and chromate treatment to enhance coating adhesion.

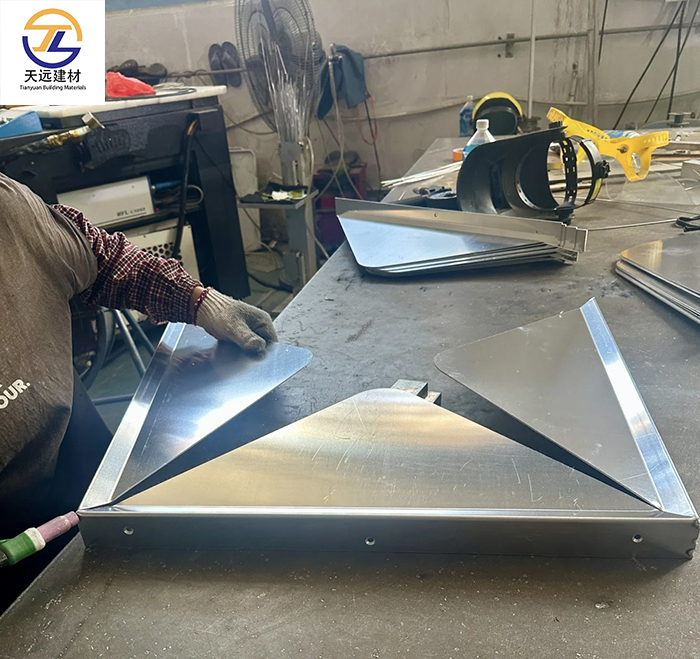

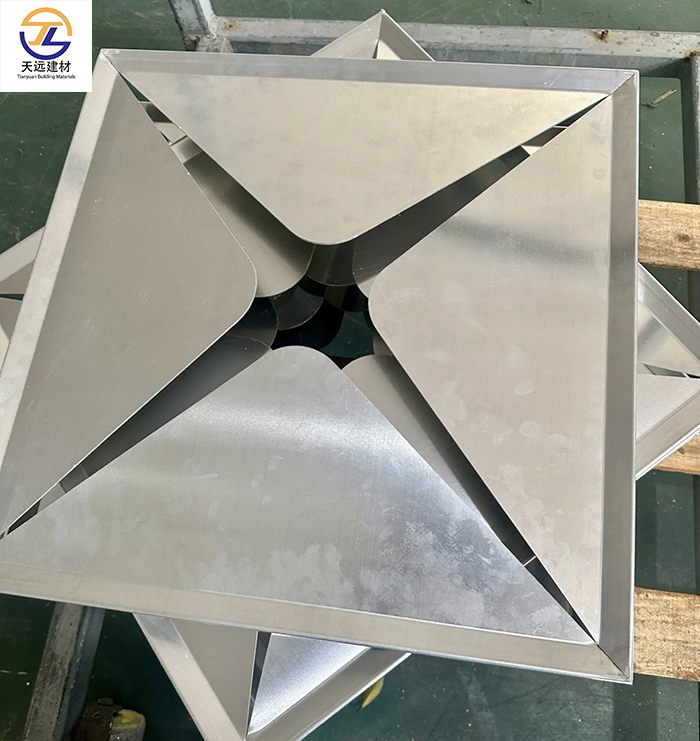

Concave-Convex Forming Methods
- Die Stamping: Specialized molds create regular or irregular embossed textures.
- CNC Bending: Precision CNC equipment bends sheets to form 3D geometric shapes.
- Etching/Engraving: Chemical etching or mechanical engraving creates embossed effects with recessed patterns.
Surface Treatment
- Primer: Epoxy primer for enhanced adhesion.
- Antique Bronze Topcoat: Fluorocarbon paint with special metallic pigments to simulate copper color and texture.
- Clear Coat: High-weather-resistant transparent coating for improved gloss and protection.
- Curing: High-temperature baking at 230℃ ensures firm bonding between coating and base material.
Key Technical Specifications
| Parameter | Value | Description |
|---|---|---|
| Thickness | 2.5mm | Balances strength and lightweight design |
| Material | 3003/1100 Aluminum Alloy | H24 temper, tensile strength ≥150MPa |
| Size Range | Max. 8000×1800mm | Custom sizes available |
| Coating Thickness | ≥40μm (three-coat) | Ensures long-term weather resistance |
| Weight | ~6.8kg/m² | Lightweight for easy installation |
| Service Life | 20-25 Years (Outdoor) | Outperforms conventional decorative materials |
Application Scenarios
Commercial Buildings
- High-End Shopping Mall Facades: Antique bronze texture elevates luxury appeal.
- Hotel Entrances & Curtain Walls: 3D concave-convex design creates distinctive entry landmarks.
- Office Building Exteriors: Combines modernity with timeless charm to showcase corporate strength.
Cultural & Public Buildings
- Museums & Art Galleries: Retro tones blend with contemporary design to complement cultural atmospheres.
- Libraries: Calm texture fosters a quiet environment; concave-convex structure enhances acoustic performance.
Residential Buildings
- High-End Apartment Facades: Enhances property value with unique aesthetics.
- Villa Exteriors & Decorative Trim: Customizable designs reflect personal taste.
Other Applications
- Billboards & Signage Systems: 3D effects boost visual communication.
- Elevator Door Frames & Interiors: Improves space texture and ease of cleaning.
- Architectural Sunshade Systems: Concave-convex structure provides effective shading while maintaining ventilation.
Installation & Maintenance
Installation Methods
- Caulked Joint Installation: 5-10mm gaps between panels filled with sealant to accommodate thermal expansion.
- Steel Frame Fixing: Bolted to welded angle iron or square tube frames.
- Concealed Frame Installation: Suitable for ceilings; panel edges fit into keel systems with no visible fasteners.
Maintenance Guidelines
- Daily Cleaning: Wipe with clean water or neutral detergent to maintain surface shine.
- Regular Inspections: Check connections annually to ensure structural safety.
- Special Stain Removal: Use dedicated fluorocarbon coating cleaners; avoid sharp tools to prevent scratches.
The 2.5mm Fluorocarbon-Coated Antique Bronze Textured Concave-Convex Aluminum Veneer is an ideal choice for modern architectural decoration, perfectly balancing aesthetic expression and practical functionality. It not only adds a classic and elegant charm to buildings but also offers long-lasting durability and easy maintenance, making it suitable for various high-end construction projects.
