Curved Aluminum Battens with Birdcage Pattern Wood Grain Finish – Special-Shaped Flower-Designed Bent Aluminum Square Tubes for Commercial Mall & Hotel Curtain Walls & Feature Walls

Name: Curved Aluminum Battens with Birdcage Pattern Wood Grain Finish – Special-Shaped Flower-Designed Bent Aluminum Square Tubes for Commercial Mall & Hotel Curtain Walls & Feature Walls
Brand: Guangzhou Tianyuan Building Materials Technology Co., Ltd.
SKU: TY-010
Price: 8.00 USD
Availability: InStock

Basic Properties

Place of Origin: Made in China

Brand Name: TianYuan

Certification: CE,ISO9000...

Model Number: TY-010

Trading Properties

Minimum Order Quantity: 1*20"container

Price: USD15.7/m2

Payment Terms: L/C, T/T

Supply Ability: 9000M2/days

aluminium ceiling panel

aluminium linear ceiling

perforated aluminium plate

Specifications

Product Name:

Curved Aluminum Square Tube

Product Thickness:

0.5-3.0mm (Customizable)

Product Color:

All Colors Customizable

Application scenarios:

Indoor Ceilings Outdoor Curtain Walls

High Light:

curved aluminum battens wood grain

flower-designed bent aluminum tubes

aluminum curtain wall feature panels

Product Description

Curved Aluminum Battens with Birdcage Pattern Wood Grain Finish

Special-shaped flower-designed bent aluminum square tubes designed for commercial mall, hotel curtain walls, and feature walls.

Product Overview

Profiled aluminum square tubes are ideal materials for modern architectural decoration, perfectly integrating functionality and aesthetic value:

Space Artist: Creates layers and sense of flow through lines and light, enhancing architectural aesthetic value
All-round Functional Expert: Combines multiple functions including fire resistance, moisture resistance, corrosion resistance, sound absorption, ventilation, and pipeline hiding
Durable and Long-lasting: Over 20 years of service life with minimal maintenance, reducing whole-life cycle cost
Design Chameleon: Customizable into any color, texture, and shape to adapt to any design style

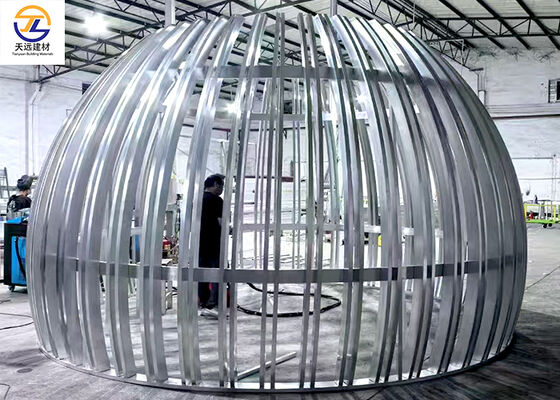

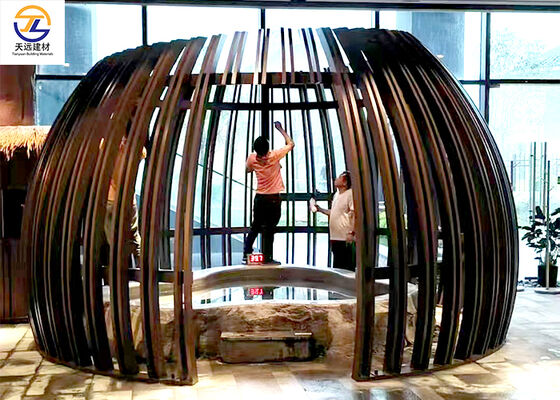

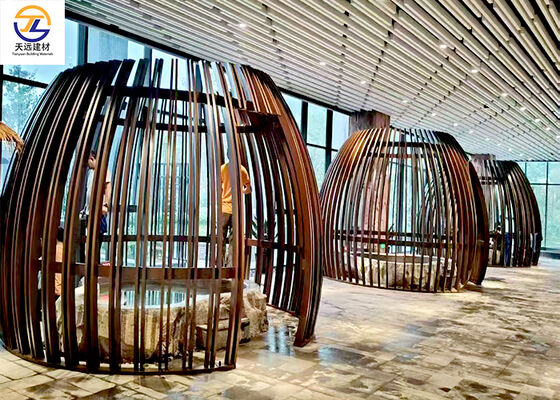

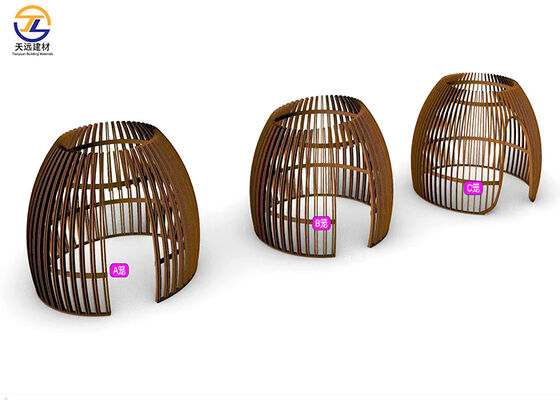

Curved Aluminum Battens with Birdcage Pattern Wood Grain Finish – Special-Shaped Flower-Designed Bent Aluminum Square Tubes for Commercial Mall & Hotel Curtain Walls & Feature Walls 0

Specification Parameters (Unit: mm)

Standard Specification Range

Bottom width: 20-400 (common: 50, 80, 100, 150)

Height: 20-600 (common: 50, 100, 200)

Wall thickness: 0.4-3.5 (0.6-1.2 recommended for indoor use, ≥1.5 for outdoor use)

Special Specifications

Up to 300×150×3.5mm, meeting the needs of large-scale projects.

Surface Treatment Processes and Effects

Profiled aluminum square tubes offer diverse surface treatments to meet different design style requirements:

Powder Coating: Rich colors (over 60 standard colors), strong weather resistance, no easy fading
Fluorocarbon Coating: Preferred for outdoor use, UV and acid-base resistant, with color retention period over 10 years
Wood Grain Transfer Printing: Simulates natural wood texture, combining the warmth of wood with the durability of metal
Stone/Marble Grain: Enhances spatial luxury, suitable for high-end venues
Anodizing: Forms natural oxide film with high hardness and wear resistance
Electroplating Treatment: Presents metallic mirror effect, enhancing spatial grandeur

Comparative Advantages vs. Other Ceiling Materials

Comparison Item	Profiled Aluminum Square Tubes	Gypsum Board Ceilings	Aluminum Ceiling Panels	Wooden Ceilings
Weight	Light (reduces building load)	Heavy (increases floor load)	Light	Light but easy to deform
Waterproofness	Excellent (no water seepage or mildew)	Poor (deforms and molds when wet)	Good	Poor (easily damp and decayed)
Fire Resistance	Class A non-combustible	Class B1 (flammable)	Non-combustible	Flammable (fire hazard)
Service Life	15-20 years	5-8 years	10-15 years	3-5 years
Maintenance Cost	Low (easy to clean, no regular replacement needed)	High (regular painting required, easy to damage)	Low	High (easy to deform and be moth-eaten)
Shape Flexibility	Extremely high (can be bent and customized into various shapes)	Average (mainly flat shapes)	Average (fixed specifications)	High but poor durability
Applicable Scenarios	All scenarios, especially outdoor and humid environments	Indoor dry areas	Humid areas such as kitchens and bathrooms	Indoor dry areas

Selection Guidance

Wood grain aluminum ceiling battens seamlessly combine the durability of aluminum alloy with the natural beauty of wood, becoming a mainstream material in modern architectural decoration. When selecting, consider space functionality, budget, and aesthetic needs - prioritize material and surface treatment, then refine specifications and installation methods. For optimal results, visit completed projects to visually assess the effect of different specifications and processes before making a final decision.
